2.1 Super-resolution methods

Super-resolution has become a hotspot of investigation in the last decades. It comprises a group of techniques that seek to produce higher-resolution images from one or more lower-resolution images¹¹. This innovative approach serves as a more recent alternative to the classic interpolation algorithms. Although both are used to increase the size of a single image, the difference between super-resolution and classic methods lies in the ability to recover lost high-frequency components. The interpolation techniques have difficulty recreating this type of information, so they have not considered super-resolution methods¹⁰.

These super-resolution techniques are divided into reconstruction-based and learning-based methods^11,13. The reconstruction-based methods, in turn, are divided into two major approaches: the frequency domain approach and the spatial domain approach. Early super-resolution techniques were frequency domain based, using the Fourier transform to find the representation of an image in the frequency domain and then eliminate the spectral aliasing^13-15. Meanwhile, spatial domain methods can create a higher-resolution image of a scene based on a set of lower-resolution images of that same scene. Each of these images must be slightly different from one another to add new information. There are also combined methods¹⁶. These could represent the scene from different angles or be taken at different time lapses. The higher-resolution image reconstruction is possible by combining the information obtained from each lower-resolution image¹⁰. Reconstruction-based methods usually obtain moderate resolution gains because these need to estimate the effect of displacement, blur, and rotation. It is an arduous task with many complications¹⁵.

Learning-based methods are the techniques that lead the current investigation on super-resolution. This approach consists of training a model with a large amount of information; therefore, it can learn the spatial structural relationship between the higher-resolution and lower-resolution images¹³. These methods successfully recreate high-frequency components without increasing the number of images needed^11,13. Nowadays, multiple surveillance proposals of reconstruction-based^17,18 and learning-based methods exist^19-21.

Recent literature has emphasized the potential of deep learning methodologies in addressing the complexities associated with super-resolution reconstruction. The proposal²² introduced an innovative deep-learning model rooted in convolutional neural networks to generate high-resolution spatial representations of surface albedo from coarse-resolution remote sensing-based data. While their study primarily focuses on the downscaling of surface albedo for bifacial solar photovoltaic panels, the underlying principles, and methodologies offer valuable insights into the application of deep learning for image super-resolution in surveillance contexts.

Complementing these findings, ²³ demonstrated the effectiveness of an integrated approach combining Efficient Sub-Pixel Convolutional Neural Network (ESPCN) and Convolutional Neural Network (CNN) for enhancing super-low-resolution facial images. Their method showcased notable improvements in image resolution and recognition accuracy, underscoring the efficacy of deep learning techniques in the realm of facial recognition within surveillance systems. The project ²⁴ compared the capabilities of the newly introduced Xilinx Versal ACAP platform against the conventional MPSoC FPGA, particularly for Deep Learning applications. Using the Vitis AI inference framework, they explored various convolutional and fully-connected models. A custom architecture for an image super-resolution model (ESPCN) on Versal ACAP yielded a 4.5x latency improvement over the standard Vitis AI framework implementation, highlighting the potential advantages of this new platform in addition to the now classical GPU implementations.

2.2 Applied method and variations.

The foundation of our super-resolution processing is built upon the Efficient Sub-pixel Convolutional Network (ESPCN) ⁽²⁵. ESPCN is a convolutional network designed to perform interpolation on individual images or videos, with a central design goal being the minimization of runtime processing. This is achieved while also ensuring low consumption of hardware resources, facilitated primarily through a novel placement of the sub-pixel convolution layer within its architecture.

3.1 Dataset and training

The dataset was created from 22000 images downloaded from the website²⁷. These face pictures do not correspond to real-life human beings, and the faces are generated by a generative adversarial network (GAN) based on²⁸ work to avoid ethical dilemmas²⁹.

The ground truth and the decimated images are the labels that compose the dataset. The ground truth is the resolution ideal; the images within this group have 1,024x1,024 resolution. Meanwhile, the decimated images are the homologous set, where each image from the ground truth diminishes its resolution. The decimation process is carefully made to avoid spectral aliasing phenomena and thus evade future adverse effects on the training.

The dataset is divided into two subsets: the training and validation sets. The distribution between both sets is 75% (16500 Images) and 25% (5500 Images) of the total amount of images, respectively. Our ESPCN model was trained using the Pytorch deep learning library. We utilized the Adam optimizer, paired with a mini-batch strategy, to refine our model. The primary cost function was Mean Squared Error (MSE), and the learning rate was set to 1e-3. This approach allowed for the nuanced adjustment of the model's weights with each iteration, incrementally improving the quality of the super-resolved images.

Minor modifications were made to the original ESPCN implementation to enhance training efficiency and fully exploit our available hardware resources. The batch size was substantially increased to 1000 to maximize the computational power of an 8-GPU cluster equipped with GTX1080Ti graphics cards that we used in our training and model evaluation. Default values from the Pytorch library were used for other hyperparameters, with the learning rate maintained at 1e-3, and the Adam optimizer's Beta1, Beta2, and Epsilon parameters were set to 0.9, 0.999, and 1e-8, respectively. The effectiveness of these parameter settings is evident in Figure 1, which illustrates the steady improvement of MSE, PSNR, and SSIM metrics over successive training epochs; in all training process, we attain similar results in the convergence of the algorithm around 400 epochs.

3.2 Hardware

Once the model was appropriately trained, it was implemented on a Jetson TX2. This board is an embedded system manufactured by Nvidia, and designed for artificial intelligence applications. The TX2 has a camera module of 5 Mega Pixels, allowing the Jetson TX2 capabilities in artificial vision.

3.3 Software

The ESPCN is implemented by a piece of software responsible for coordinating and executing the duties of the embedded system. Figure 2 contains a flowchart that explains the functioning of the main program.

Firstly, it is necessary to initialize essential objects like the ESPCN itself and a frontal face detector Haar cascade³⁰, then the main program enters the main loop, where the camera captures an initial image; this image is treated to search for any human face in it by the Haar cascade classifier.

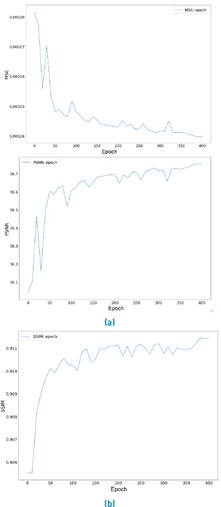

Figure 1 Training Performance Metrics for ESPCN: The progression of Mean Squared Error (MSE), Peak Signal-to-Noise Ratio (PSNR), and Structural Similarity Index Measure (SSIM) across epochs during the evaluation phase. From Top to Bottom

In case this search has a positive result, there is a human face in the image; the main program must estimate a region of interest (ROI) that preserves the face found correctly. This ROI is used as input for the model, so the ESPCN calculates a higher-resolution version. It is essential to clarify that there are pre-process and post-process tasks related to the model operation. Finally, the output image is visualized on a monitor connected to the embedded system. If the face detector has a negative result, no human face is in the image; the initial image does not require any other treatment and is visualized on the monitor immediately. The main loop will run while the process supporting the main loop is running.

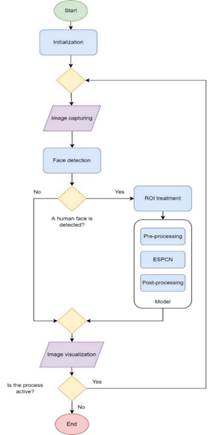

Figure 2 Flowchart of the main program

4.1 Model testing plan

The model is evaluated based on five metrics: peak signal-to-noise ratio (PSNR), structural similarity index measure (SSIM), Frechet inception distance (FID), blur, and face distance. Each of these metrics measures different aspects of the result images from the ESPCN.

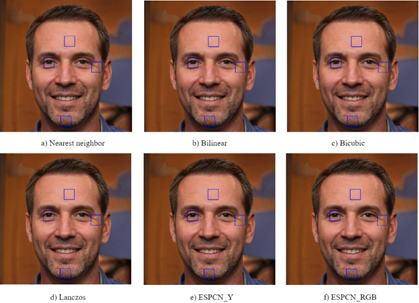

The classic interpolation methods: Nearest neighbor (NN), bilinear, bicubic, and Lanczos are used as performing references. These methods were chosen due to their extensive use in practical image processing applications, primarily because of their swift computational efficiency. Through a visual evaluation, we aim to illustrate the capabilities of ESPCN by juxtaposing its outputs with those derived from the classical methods on specific portions of a selected validation set image.

4.2 Embedded system implementation

The NVIDIA Jetson TX2 was selected for its optimized architecture for neural network computations, primarily driven by its GPU cores. This device, coupled with NVIDIA's CUDA technology, ensures not only efficient parallel processing but also offers adaptability across different platforms, facilitating the potential scalability of our solution.

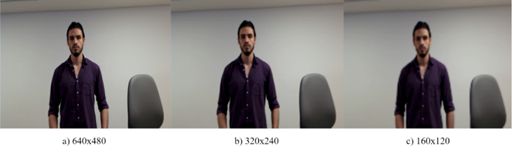

The choice of resolutions, specifically 640x480, 320x240, and 160x120, aligns with the prevalent VGA standard used in video surveillance systems. These resolutions were chosen to assess the model's capability to enhance commonly encountered surveillance footage to a more detailed 1,280x960 resolution. In the context of surveillance, increased resolution aids in enhancing discernibility, thereby making details more perceptible.

Embedded systems, including the Jetson TX2, come with their set of challenges, such as memory constraints, power consumption considerations, and heat dissipation issues. These challenges were addressed through model optimization and leveraging the efficiencies inherent to the TX2,. The resulting system exhibits commendable energy efficiency, which is essential for sustained surveillance operations.

In conclusion, the successful deployment of the ESPCN model on the Jetson TX2 highlights its potential for real-time surveillance applications, while also underscoring the broader applicability of sophisticated neural network models on embedded platforms.

5.1 Model testing plan results

Our experiments demonstrate the superior performance of the Efficient Sub-Pixel Convolutional Network (ESPCN) model over classical interpolation methods across multiple metrics, as can be seen in Tables 1 to 5. For both the PSNR and SSIM results, the ESPCN model, in both Y and RGB modes, consistently outperforms Nearest Neighbor, Bilinear, Bicubic, and Lanczos interpolation methods across scale factors of 2, 4, and 8. This suggests that ESPCN provides better image quality with higher similarity to the original high-resolution image. Similarly, for the FID metric, ESPCN shows significantly lower values than the other methods, implying that the distribution of the generated images is closer to the distribution of real images. In the Blur metric results, ESPCN presents lower mean values, which indicates reduced blurriness in the produced images. Finally, for the Face Distance metric, ESPCN achieves lower mean values than most other methods, suggesting its potential superiority for facial image processing applications. This collection of results underlines the potential of the ESPCN model as a robust solution for enhancing image resolution, particularly in the context of video surveillance.

5.2 Embedded system implementation results

The Efficient Sub-Pixel Convolutional Neural Network (ESPCN) uses a learnable upscaling process at the end of the network. The upscale factor in ESPCN is achieved by the PixelShuffle operation, which rearranges the elements in the tensor from the depth dimension to the spatial dimensions.

When the scale factor increases, the number of MACs decreases because, as can be seen in Table 6, in ESPCN, the images are upscaled in the feature map space rather than in the pixel space. The convolution operations are performed in low-resolution space, which requires fewer MACs as the scale factor increases. This is because the amount of detail the model needs to generate decreases as the scale factor increases, and the overall workload of the network decreases with the increase in the scale factor, which leads to the reduction in MACs. This is one of the benefits of using ESPCN over other super-resolution methods, as it can perform the upscaling operation more efficiently, especially for large upscale factors.

ur hardware implementation yielded similar average execution times for both the ESPCN_Y and ESPCN_RGB models, roughly around 5 seconds more than 5 times more on average than the worst case with Lanczos. This similarity may be attributed to specific characteristics of the compiler and the architecture of the hardware on which the models were run - the Jetson TX2 board. In this case, we did not utilize the GPU of the board to optimize the algorithm, just as we had not optimized the classic methods such as Nearest Neighbor, Bilinear, Bicubic, or Lanczos for the processor. Regardless, all models produced an output image with a resolution of 1280x960. The computational complexity of interpolation methods such as Nearest Neighbor, Bilinear, Bicubic, and Lanczos can be broadly estimated in terms of Multiply-Accumulate operations (MACs) in terms of a scale factor sf and a number of pixels n. Nearest Neighbor, performing one operation per output pixel, has complexity proportional to n * sf * sf. Bilinear, operating on a 2x2 neighborhood, multiplies this by four, leading to 4 * n * sf * sf. Bicubic, considering a 4x4 pixel grid, increases the complexity to 16 * n * sf * sf. Lastly, Lanczos typically operates on a larger neighborhood (e.g., 6x6 for Lanczos3), giving a complexity of 36 * n * sf * sf. The worst case is Lanczos with n=1280*960 and sf=8, the MACs will be 2831155200, which is 3.6 less than the ESPCN_Y with the same resolution.

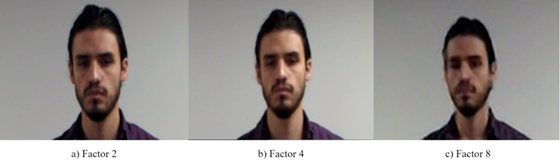

Figure 3 Factor 2 image comparison results

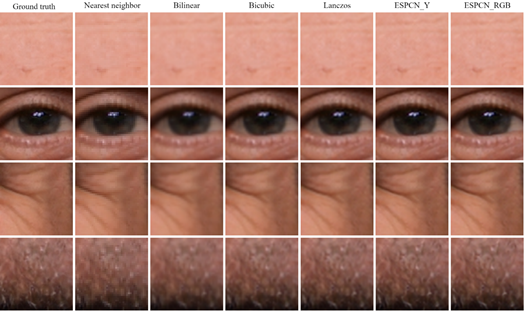

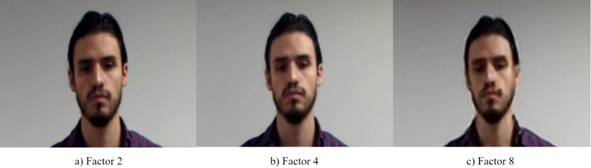

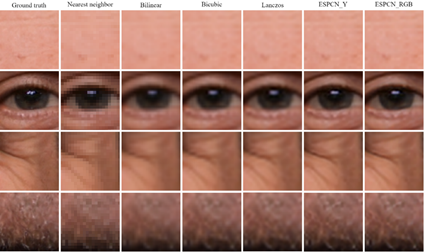

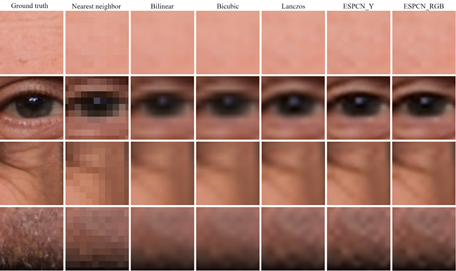

Figure 4 Factor 2 area image comparison results
