Introduction

The concern for encouraging sustainable development in various sectors of the industry has promoted the study, design, and characterization of new materials that contribute to mitigating the environmental impact associated with the use of traditional materials derived from the processing of petroleum-derived resources, thereby reducing the greenhouse gas emissions caused by the technological processes applied in their production ^1,2. In this sense, and in line with the Sustainable Development Goals, biocomposite materials have emerged as a new alternative that allows replacing conventional solutions, reducing the use of inputs, and minimizing the carbon footprint ^1-5.

According to ⁴, biocomposite materials offer some advantages over conventional composite materials, including reduced CO2 emissions, biodegradability, low toxicity, and energy efficiency. However, the use of biocomposites in the construction sector may be limited by factors such as strength, stiffness under humid conditions, incompatibility between the constituent materials, and variability in the composition of the plant fibers used as reinforcement, which makes it difficult to standardize the properties of the materials ^{5 8}.

Due to its innovative nature, additive manufacturing (or 3D printing) has become important in the design, manufacture, and characterization of biocomposite materials ⁹⁽¹³. Among the different additive manufacturing techniques available, fused filament fabrication (FFF) stands out, which consists of the layer-by-layer deposition of a thermoplastic polymer. The filament is heated and extruded through a nozzle, shaping the object in a controlled manner. Through this printing method, it is possible to reduce fabrication cycle times and thus minimize production costs. Additionally, this process allows reducing waste material, making it possible to modify the microstructure of each of the composite’s layers, which provides the finished product with added value ¹⁰. Furthermore, 3D printing offers flexibility to generate complex structures that satisfy the design requirements of various industrial sectors ^13-16.

The use of plant fibers as reinforcement for polymeric filaments has increased in recent years ¹⁷. Its main advantages include wide availability, low cost, good mechanical behavior, and biodegradability. From a technical and environmental perspective, this makes them a viable option for the development of new, alternative materials that can be applied in various fields of engineering, e.g., civil construction ^18,19.

Due to its ease of processing, one of the biopolymers most commonly used as a biofilament matrix is polylactic acid (PLA), which is processed through the chemical sintering of sugars obtained from the biomass of plants such as corn, cassava, and sugar cane ^20,21. This material is known for its low toxicity, biodegradability, high hardness and stiffness, and good resistance to most common solvents ²¹.

According to ²², some parameters, such as the extrusion temperature and speed, can affect the properties of these filaments. In addition, other parameters like the selection of raw materials (fiber and polymer) and premixing proportions and techniques can influence the final quality (roughness, hardness, porosity, and resistance) of the biocomposite filaments produced by screw extruders. Despite several published studies, to date, there are some research gaps regarding the optimization of these properties for specific applications ²³.

Recent studies have shown that fiber content, surface treatments, and the use of compatibilizing agents can affect the strength and stiffness of biofilaments ^24-26. ²⁴ analyzed the physical and mechanical properties of specimens printed with polypropylene reinforced with different hemp fiber contents. These authors demonstrated that flexural strength, tensile strength, and absorption capacity vary significantly depending on the fiber content and printing method used. In addition, ²⁵ analyzed the effect of surface modification on bamboo fibers used as reinforcement in acrylonitrile butadiene styrene (ABS) filaments. As a result of the treatment, the authors reported that it was possible to improve both the filament morphology and the mechanical properties of the printed specimens.

²⁶ examined the effect of a lignin-based compatibilizing agent on the tensile strength, elongation, and toughness of polylactic acid/lignin composites, attributing the improvements to enhanced intermolecular interactions for 3D printing applications.

Other studies have focused on evaluating the degradation and sustainability of PLA-printed materials. For instance, ²⁷ analyzed the degradation of PLA biocomposites reinforced with algal biomass under abiotic and thermophilic composting conditions. This study showed that the addition of algal biomass increased the biodegradability of PLA, an effect attributed to the high nitrogen content in the biomass, which promoted microbial growth.

²⁸ developed PLA-based bionanocomposites reinforced with crystalline nanocellulose in order to improve the mechanical and thermal properties of 3D-printed PLA products. This reinforcement enhanced the crystallinity and the thermal, mechanical, and rheological properties of PLA, demonstrating that small amounts of crystalline nanocellulose can optimize the performance of 3D printing filaments ²⁸.

In addition, ²⁹ investigated the effect of adding carrot pulp and ground walnut shells to PLA, aiming to evaluate how these additives influence the mechanical properties and biodegradability of FFF-printed parts. The study showed that these plant-based additives can improve the flexural strength and biodegradability of the biocomposite, although they reduce its fracture toughness.

Despite the advances reported in the literature, the use of filaments made from the combination of plant-based materials as raw input in 3D printing processes still requires a deeper understanding of their mechanical behavior, as well as an analysis of the design parameters that influence their quality and performance. This study evaluated the density, roughness, hardness, strength, and stiffness of biocomposites printed using biofilaments reinforced with 10% pulverized plant fibers. Due to their biodegradability, renewability, and ease of processing, PLA granules were used for filament fabrication. In addition, rattan fibers (a plant-based material that has been scarcely explored in the development of 3Dprinting filaments) were used as reinforcement. These fibers were obtained from waste generated by Bambú y Guaduas de Colombia, a company dedicated to the production of furniture and handicrafts. This selection contributes to reducing solid waste, promotes the use of renewable resources, and aligns with the principles of sustainable development and the circular economy.

As an emerging technology, 3D printing was chosen for the composite. The effect of several design parameters was evaluated through statistical analysis. Equations were formulated to predict the material’s behavior based on the parameters used during 3D printing. The novelty of this study lies in the development and characterization of PLA-based filaments reinforced with rattan fibers, whose application in additive manufacturing has not been extensively explored. Furthermore, this study provides insights into the way in which printing parameters affect the mechanical behavior of these biocomposites. Additionally, obtaining prediction equations can contribute to standardizing and optimizing the properties of printed biocomposites.

Materials and methods

To produce the filaments, commercial PLA granules and 30 cm long, 1 cm wide rattan strips were used. We employed waste fibers donated by Bambú y Guaduas de Colombia. To obtain the reinforcing material, the strips were crushed, dried in an oven at 105 °C, pulverized, and then sieved using a 45 µm mesh. The drying temperature was selected in accordance with the recommendations of ASTM 4442-20 ³⁰. We used Ingeo D4032, a biopolymer manufactured by Nature Works LLC in the USA. The pellets were dried for four hours at 80 °C before mixing. Two types of filaments were produced for comparison: pure PLA filaments (PLA-S) and PLA-based composite filaments (PLA-R). The latter were prepared by blending 90% PLA with 10% pulverized rattan fibers. The pulverized rattan fibers were manually mixed with PLA pellets. All filaments, with a diameter of 1.75 mm, were extruded with a single-screw extruder at 180 °C and a feed rate of 50 mm/s. After extrusion, the filaments were stored in a dry environment to prevent moisture absorption.

To evaluate the quality of the filaments, physical and mechanical characterization tests were carried out. A description of the procedures is presented below.

For the CAD model, the dimensions established in ASTM 638 for type-V specimens were adopted ³³. Specimens with an infill density of 20, 40, and 80% were printed. As a filling pattern, a gyroid-type element was established. To evaluate the effect of printing orientation on the properties of the biocomposite, angles of 0° (horizontal) , 45° (diagonal), and 90° (vertical) were used. The orientation diagram is presented in Fig. 2. We employed an Ender 5 S1 printer with a 0.4 mm brass nozzle at a temperature of 205 °C. The print bed temperature was 60 °C, and the print speed was set at 80 mm/s. Theprint layer height was 0.3 mm.Thislayerthickness allows for faster printing without compromising mechanical strength.

We evaluated the effect of printing parameters (fill density and print orientation) on the physical (density, roughness, and hardness) and mechanical properties (strength and elastic modulus) of the specimens printed with PLA-R filaments. We used a commercial statistical analysis software, implementing a central design composed of two factors, with 14 runs and five replications.The statistical analysis yielded equations that allow predicting the properties of the biocomposite based on the design variables.

Results and discussion

To analyze the quality of the filaments, 800x micrographs of the PLA-R and PLA-S filaments were obtained. These are presented in Fig. 3.

In Fig. 3a, the presence of randomly distributed fibers encapsulated by the polymeric matrix can be observed. Additionally, there are voids at the interface between the biopolymeric matrix and the reinforcing fiber. The PLA-R filaments have an irregular appearance, with some discontinuities. These f indings can be attributed to the lack of homogeneity in the distribution of fibers during extrusion. On the other hand, as shown in Fig. 3b, the PLA-S filaments have a smooth and more homogeneous appearance.

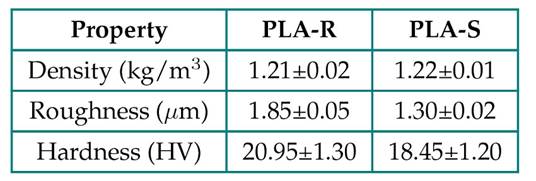

Thedensity, roughness, and hardness of the filaments were determined by following the procedures described in Section 2 for PLA-R and PLA-S, the results of which are presented in Table I. Note that, despite the voids generated inside the filament during extrusion, the addition of plant fibers did not cause significant density changes. However, the roughness of the PLA-R filaments increased by approximately 40%. According to ³⁴, the smooth surface of biopolymeric filaments such as PLA-S can be associated with a greater fragility. This is consistent with the observed increase in the Vickers microhardness of the PLA-R filaments (approximately 17%). It should be noted that the plant fibers act as reinforcement for the PLA, which contributes to increasing the hardness of the filament. On the other hand, since this is a natural material, a product with a less homogeneousandroughertextureisobtained during extrusion.

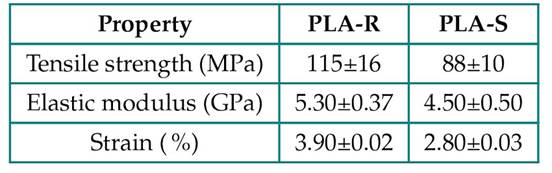

As shownin Table II, the mechanical properties of the filaments were also determined.

Table II shows an increase of approximately 30% in the tensile strength of the PLA-R filaments, as well as an increase of 17% in their elastic modulus. Additionally, their percentage of deformation increased by 40%.

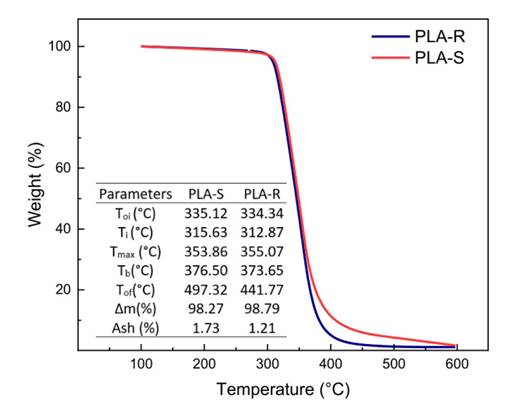

The results of the thermal analysis are presented in Fig. 4. Regarding the thermogravimetry test, it was observed that the addition of pulverized rattan fibers does not significantly affect the thermal behavior of the filaments. Differences of less than 1% can be observed in Ti, Toi, Tmax, and Tb. These results are consistent with those presented by ³⁵ for pure PLA specimens. On the other hand, for PLA-R, a decrease of 11% can be observed in the temperature at which the final combustion of the material occurs (Tof), which may be associated with weight loss and the depolymerization of the rattan f ibers ³⁶.

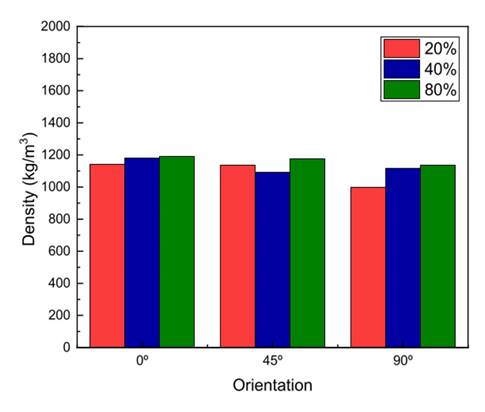

Fig. 5 shows the effect of infill density and printing orientation on the density of specimens printed using PLA-R filaments. As for the latter, variations of less than 15% are observed. From the results, it can be concluded that the orientation of the printing layers did not significantly affect the density of the material. Similar results were observed when increasing the infill percentage from 20 to 80% in specimens printed at 0°, 45°, and 90°. Because the density of the material depends not only on the infill density used but also on the configuration (fill type), printing completely dense parts may be unnecessary and represent a waste of material and increased printing times.

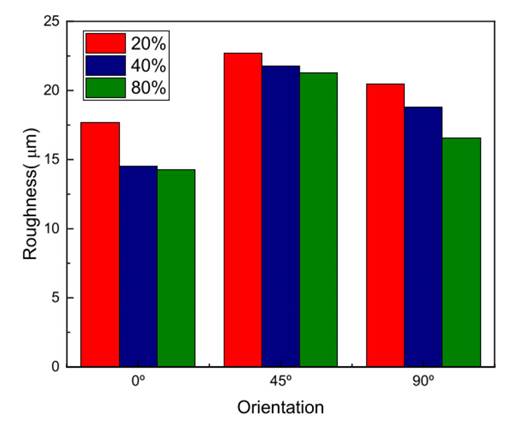

Surface roughness is considered to be one of the main quality indicators of elements created through additive manufacturing. Fig. 6 presents the effect of infill density and printing orientation on the roughness of the specimens printed using PLA-R filaments. Note that the roughness decreases as the filling density increases. On the other hand, the orientation of the specimens on the printing bed influences the surface texture of the material. Similar results were reported by ³⁷, confirming that the roughness of the pieces increases with the printing angle.

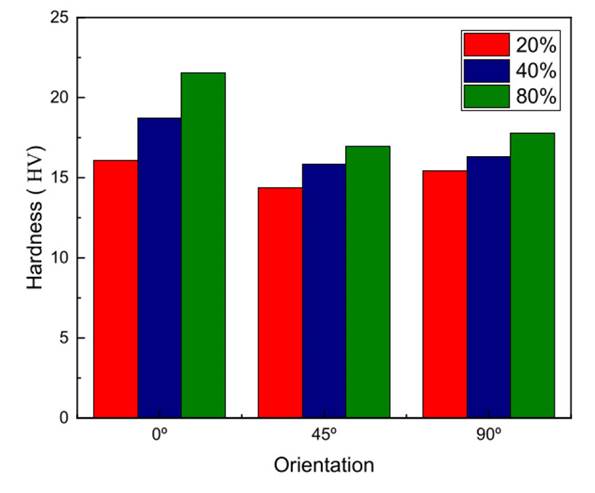

Another important parameter for evaluating the quality of the material is microhardness. Fig. 7 shows the effect of the analyzed printing parameters on the Vickers hardness of the printed specimens. According to the results, different filling densities entail differences in the hardness of the printed specimens. A high density leads to a low number of voids and, therefore, to high hardness values. The reported microhardness was between 16.1 and 21.55 HV for specimens printed at 0°. However, no significant variations were observed in specimens printed at 45° and 90°.

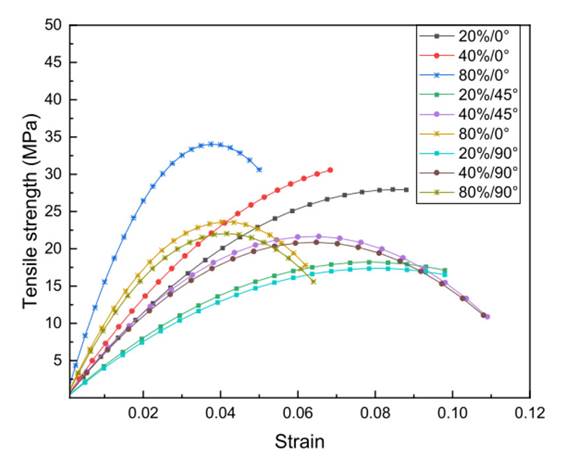

The effect of the infill density and the printing orientation on the specimens’ tensile strength and elastic modulus is shown in Figs. 8and 9, respectively. Note that, by increasing the infill density from 20 to 80%, a 20% increase in the tensile strength of the samples printed at 0° is obtained, in addition to a significant increase in their elastic modulus (1617 MPa). A gyroid-type fill pattern contributes to the strength and stiffness of the material since it maintains a constant curvature in all directions. However, the specimens printed at 45° and 90° exhibited a reduction of up to 50% in their maximum tensile strength. Similar results were obtained by ³⁸, demonstrating that a material performs better if the printed element is oriented along the direction in which the load is applied.

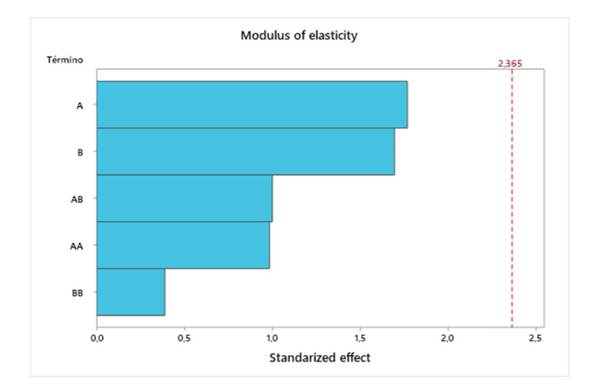

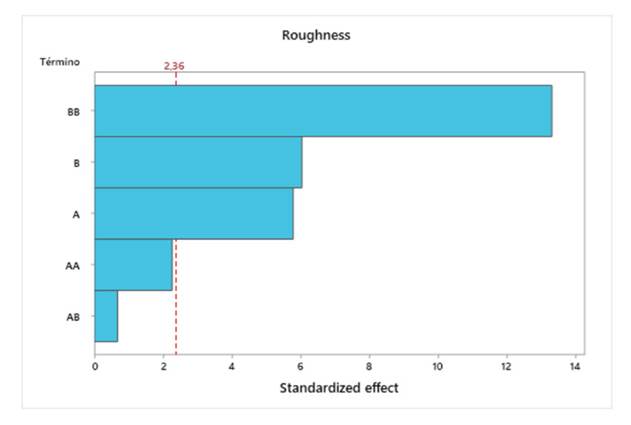

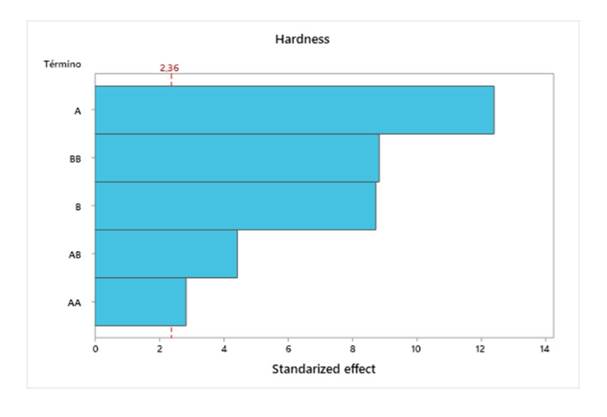

The effect of the aforementioned parameters and their interaction was evaluated by analyzing the response surface. A Pareto diagram was constructed in order to visualize the influence of the parameters on the roughness, hardness, tensile strength, and elastic modulus of the specimens. The results are shown in Figs. 10, 11, 12, and 13. Here, the labels represent the factors and their interactions: A corresponds to the infill density (%), B to the printing orientation, AA to the second-level effect of factor A, BB to the second-level effect of factor B, and AB to the interaction between the infill density and the printing orientation. It was observed that these parameters significantly affect the hardness and tensile strength of the samples printed through the fused deposition of plant filaments. In the case of roughness, the interaction between the studied variables produced no visible effect, nor was the elastic modulus of the samples tested for tension significantly affected.

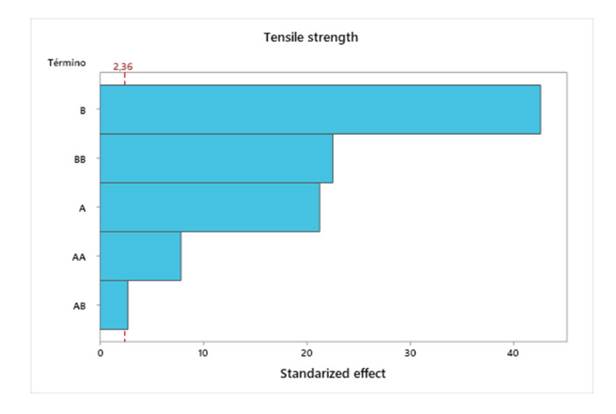

Pareto diagram used to evaluate the effect of the design variables on tensile strength

where:

Conclusions

This work evaluated the physical and mechanical properties of printed specimens elaborated via FFF, using 90% PLA and 10%pulverized rattan fibers. The main findings are presented below.

The presence of micro-voids caused by the lack of homogeneity in the distribution of the fibers during extrusion did not affect the physical and mechanical properties of the plant filaments.

PLA-R showed a 42.3% increase in surface roughness and a 13.6% increase in hardness. These results indicate that the addition of rattan fibers affects both the surface texture and the hardness of the filaments.The PLA-R filaments showed a 30.7% increase in their tensile strength, a 17.8% increase in their elastic modulus, and a 39.3% increase in their maximum strain, demonstrating that the incorporation of pulverized rattan fibers as reinforcement contributes to improved filament strength, stiffness, and ductility.

The surface roughness of the printed samples increased by up to 35% with the printing orientation, and it decreased by 17% as the infill density increased.

Hardness and tensile strength increased significantly as the infill density increased, and they decreased as the printing angle increased from 0° to 90°. The specimens printed with 80% infill showed a notable increase in rigidity. However, the corresponding Pareto diagram does not identify the effect of the studied variables and their interaction on the elastic modulus.
