Stress analysis of floor roadway affected by overhead mining

Mechanical analysis of floor stress affected by overhead mining

Given the relationship between the advancing direction of working face and floor roadway, the overhead mining was divided into mining with the advancing direction of the working face parallel to the roadway and mining in which the advancing direction was perpendicular to the roadway. Hence, the effects of mining on the floor roadway differed. On-site observations indicated that the mining stress in the surrounding rocks of the floor roadway was affected by overhead mining when the advancing direction perpendicular to the roadway exceeded that of the other type of overhead mining, and the mining influence of the former was more evident (^{Dai et al., 1999}; ^{Yuan et al., 2016}). Hence, a mechanical model of overhead mining when the advancing direction was perpendicular to the roadway was established, and the laws influencing the mining stress of a floor roadway with different layers were analyzed.

Front abutment stress can be formed ahead of the coal wall because of the mining activities. In order to solve the problem conveniently, the front abutment stress could be simplified and deemed as a uniform load according to the reference written by ^{Lu et al. (2017)}. The distribution zone of the front abutment stress approximately corresponded to a rectangle with a length L and width W. The overlying load was viewed as a uniform load q, as illustrated in Figure 2a.

Figure 2 A mechanical model for overhead mining: (a) spatial model and (b) planar model.

When the peak value of the abutment stress was just above the middle axis of the roadway, the mechanical model was simplified as a plane stress model, as shown in Figure 2b (^{Dai et al., 1999}), and the vertical stress component σ _H of the surrounding rocks of the roadway was obtained as follows:

where q denoted the average value of front abutment stress (MPa); L denoted the length of the working face (m), according to the geological report of the working face, L is 160 m; and σ _H denoted the vertical stress component of surrounding rocks of the roadway (MPa); H denoted the vertical distance between the working face and the floor roadway.

Based on the geological report of the working face, the mining depth h was approximately 566 m. Thus, the in situ stress a corresponding to level 566 m was calculated by Eq. (2) as follows:

where y denoted the unit weight of the rock mass. In the present study, the unit weight of the overlying rock mass was assumed to be 25.5 kN/m3 (^{Sainoki and Mitri, 2015}; ^{Wang et al., 2018}). Hence, the average value of the front abutment stress q was 23.09 MPa because the average value of the abutment stress concentration factor was 1.6, as indicated by the geological report of the working face. Thus, the vertical stress σH of the surrounding rocks of the roadway with different positions was calculated by Eq. (1), and the values were listed in Table 1.

Table 1 Vertical stress σ _H of surrounding rocks of the roadway with different positions.

As shown in Figure 3 and Table 1, when the vertical distance between the working face and floor roadway was less than 160 m (i.e., 0 m < H ≤ 160 m), the vertical stress σ _H of the surrounding rocks for the roadway always exceeded the corresponding in situ stress σ ⁰ _H (i.e. the in situ stress of level which corresponds to different positions of the floor roadway). This indicated that the mining activities in this range affected the floor roadway and the propagation depth of the mining stress was about 160 m. When 0 m < H ≤ 40, the value of σ _H was greatly larger than its corresponding in situ stress σ ⁰ _H and maintained at about 23MPa. Moreover, the curve slope that could reflect the attenuation rate of the stress in this range was very small, so it was in the low attenuation rate state and the roadway was affected by mining activities notably due to the high stress. With an increased in H, the σ ⁰ _H linearly increased, while the σ _H decreased when 40 m < H ≤ 160 m. Moreover, the attenuation rate of the vertical stress decreased notably due to the curve slope obviously increasing. Hence, the difference between σ _H and σ ⁰ _H decreased. These indicated that the effect of mining activities on the floor roadway weakened.

Figure 3 Vertical stress σ _H of surrounding rocks of the roadway with different positions.

The relationship between the vertical stress σ _H and vertical distance H between the working face and the floor roadway was obtained by curve fitting, as shown in Eq. (3), and a high fitting accuracy was observed. The expression was as follows:

Evolution of mining stress in floors affected by overhead mining

Establishment of UDEC numerical model

The numerical simulation methods commonly used in engineering and theoretical analysis can effectively solve complex engineering problems. The UDEC is a two-dimensional discrete element calculation program for discontinuous media that allows large deformation sliding, rotation, and detachment along the joint surface of a discrete rock mass. The structure of the overlying strata and distribution of the mining stress in the roof and floor are clearly reproduced. Thus, it satisfied the needs of the present study (^{Shnorhokian et al., 2014}). Based on the geological conditions of panel 10302 in Xinglongzhuang coalmine, a UDEC numerical model was established with respect to the overhead mining and floor roadway.

The thicknesses of the roof and floor of panel 10302 were simplified and adjusted to satisfy the research requirements. Given the boundary effect, a 340 m (length) x 150 m (high) calculation model was established, as shown in Figure 4. The mining depth and thickness of the coal seam in the model were 500 m and 10 m, respectively. The vertical distance between the coal seam and floor roadway was 5 m, and the horizontal distance from the left boundary of the model was 150 m. In the mine-wide model, meshes were more densely discretized around the coal from which the stopes were extracted compared to those in areas near the model boundary. Thus, the discretization method made it possible to simulate the stress state in an active mining area as accurately as possible using the available computation capability (^{Hofmann and Scheepers, 2015}; ^{Sainoki and Mitri, 2015}).

Figure 4 A numerical model for calculation.

The mechanical properties assigned to the blocks and joints of the model were conventionally derived from laboratory testing programs (^{Yu et al., 2016}; ^{Jiang et al., 2017b}). The physical and mechanical parameters of the rock mass derived from the geological report and rock mechanical test report of the working face employed in the model were listed in Table 2. The Mohr-Coulomb model was used to simulate the continuous part of the rock because of the elastic and plastic deformation of the overlying strata, and the joint surface contact-Coulomb slip model was used to simulate the joint calculation (^{Itasca, 2005}; ^{Sainoki and Mitri, 2014}).

Table 2 Mechanical properties of the rock mass.

The full displacement constraint boundary was used at the bottom of the model, and the horizontal displacement constraint and vertical displacement free conditions were used at the left and right sides, respectively. The top corresponded to a free boundary. The simulated depth of the coal seam was 500 m, and the roof height of the model was 30 m. Thus, the simulated failure of the overlying strata with a height of470 m was assumed to be a result of the vertical stress that acted on the top of the numerical model. Hence, the compensated load a could be calculated by Eq. (2) as follows:

where h _v denoted the height of the failed simulated strata. In the present study, the height of the failed simulation was set at 470 m. According to the geological report from the Xinglongzhuan coalmine, the value of the horizontal stress applied to the two sides of model with the trapezoidal distribution was half of the value of vertical stress.

Evolution of mining stress in floors affected by overhead mining

The floor roadway was significantly influenced by overhead mining within the range of 0 m < H ≤ 40 m, as discussed in section 2, but the effect decreased with an increase in H. Hence, in this study, based on the condition of the floor roadway located below a working face of 5 m, the laws influencing the mining stress in floor of the roadway (as affected by the overhead mining) were examined. The horizontal distance between the working face and floor roadway was defined as L _D , corresponding to 60 m, 40 m, 20 m, 0 m, -20 m and -60 m (where the negative value indicates the working face had passed the roadway) as shown in Figures 5 - 10.

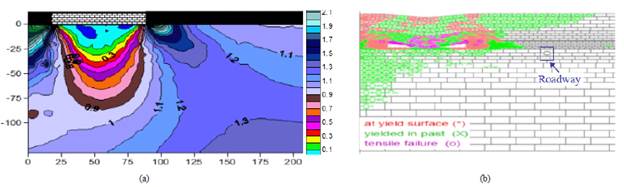

Figure 5 Floor stress affected by overhead mining when L _D = 60 m: (a) Distribution of floor stress; (b) plastic zone of coal roof and floor.

Figure 6 Floor stress affected by overhead mining when L _D = 40 m: (a) Distribution of floor stress; (b) plastic zone of coal roof and floor.

Abutment stress was not only concentrated in front of the coal wall, but also would transfer to the bottom of coal floor affected by mining activities. As shown in Figures 5 and ⁶, when the horizontal distance between the working face and floor roadway were 60 m and 40 m (i.e., L _D = 60 m, 40m), the abutment stress was formed ahead of coal wall with 56 m and 47 m, respectively. However, the floor roadway was beyond this range when L _D = 60 m which indicated that it was not affected by overhead mining; thus the surrounding rocks of floor roadway did not fail. When L _D =40 m, the floor roadway was in the margin of the abutment stress-affected zone with the small stress concentration factor which reflected the degree of stress concentration (stress concentration factor was the ratio of concentration stress to in situ stress); thus, only the roadway roof failed. Hence, it indicated that the effect of overhead mining on the floor roadway was slight and the roadway support did not need to be strengthened when L_D≥40 m.

From Figures 7 and ⁸, as the working face gradually approaching the roadway, the effect of overhead mining on the roadway enhanced and the floor roadway was located in the stress significant influence area with a high-stress concentration factor of 1.6; thereby the surrounding rocks of roadways seriously destroyed, and plastic failure distributed around the roadway. Hence, when 40m>L_D≥0 m, the effect of overhead mining on the floor roadway enhanced notably by the high concentration stress and the roadway support should be paid more attention to.

Figure 7 Floor stress affected by overhead mining when L _D = 20 m: (a) Distribution of floor stress; (b) plastic zone of coal roof and floor.

Figure 8 Floor stress affected by overhead mining when L _D = 0 m: (a) Distribution of floor stress; (b) plastic zone of coal roof and floor.

From Figure 9, when 0 m>L_D≥-20 m (the negative value indicated that the working face had passed the floor roadway), the working face was passing through the roadway and the roadway was beneath the goaf of the working face; thereby locating in a stress-relaxed zone with a small stress concentration factor of 0.2 when L_D=-20 m. It meant that the effect of overhead mining on the floor roadway decreased gradually due to the small vertical stress. However, during this progress of mining operation, the roadway had experienced the effect of the largest stress and then the effect decreased with the stress dropping; thereby inducing serious failure of surrounding rocks of roadway. Hence, in this stage, even though the roadway located in the goaf-affected zone gradually, it had experienced the notable effect of the largest stress, hence the serious failure was observed and the range of plastic failure increased as shown in Figure 9(b).

Figure 9 Floor stress affected by overhead mining when L _D = -20 m: (a) Distribution of floor stress; (b) plastic zone of coal roof and floor.

As shown in Figure 10, when -20 m>L _D≥-60 m, as the goaf zone increased, the vertical stress in the goaf recovered and increased with constant compaction of migrated overlying strata. The effect of the stress on the floor roadway increased gradually and the stress concentration factor increased to 1.2 which indicated the floor roadway re-located in the stress increasing zone when L _D=-60 m. Hence, the vertical stress in the goaf re-affected the roadway. This effect by the vertical stress in recovery zone of the goaf was often neglected although it might influence the roadway significantly, the failure of surrounding rocks of roadway aggravated again as shown in Figure 10(b). Hence, when -20 m>L_D≥-60 m, the roadway was affected by the recovered stress in the goaf and the failure of roadway aggravated further which indicated that the effect of the recovered stress on the roadway should not be ignored and necessary support should be considered with respect to the roadway.

Figure 10 Floor stress affected by overhead mining when LD = -60 m: (a) Distribution of floor stress; (b) plastic zone of coal roof and floor.

Hence, according to the aforementioned analysis, the evolution laws of the vertical stress and the effect on the floor roadway were obtained, as shown in Table 3 and Figure 11.

Table 3 Stress concentration factor of rocks surrounding of floor roadway.

Figure 11 Relationship between L _D and stress concentration factor.

The entire process of overhead mining with respect to the effect on the floor roadway was divided into four stages.

Stage I: 40 m ≤ L _D < 60 m. The stress concentration factor of the rocks surrounding the roadway exceeded 1 and rose slightly with a decrease in L _D . Hence, the effect of overhead mining on the floor roadway was slight and the roadway did not need strengthened support.

Stage II: 0 m ≤ L _D < 40 m. The stress concentration factor of the rocks surrounding the roadway significantly increased and tended to be stable with a decreased in L_D, and the maximum value increased to 1.6. Hence, the effect of overhead mining on the floor roadway enhanced notably affected by high concentration stress and the roadway support should be paid more attention to.

Stage III: -20 m < L _D < 0 m. The roadway was in the stress-relaxed state and the stress concentration factor significantly decreased with the working face passing through the roadway. However, it had experienced the notable effect of the largest stress during this stage, hence the serious failure of roadway was observed and the range of plastic failure increased. Thus the floor roadway support should be more strengthened.

Stage IV: -60 m ≤ L _D < -20 m. The abutment stress in the goaf corresponded to recovery and increased with the constant compaction of the migrated overlying strata. The floor roadway re-located in the stress increasing zone. Hence, the roadway was affected by the recovered stress in the goaf and the failure of roadway aggravated further which indicated that the effect of the recovered stress on the roadway should not be ignored and necessary support should be considered with respect to the roadway.

Engineering case

A significant effect of overhead mining on the floor roadway was observed in the above analysis of the theory and numerical simulation. Hence, on-site observations of the deformation and failure of a drainage roadway in Xinglongzhuang coalmine were used to verify the previously mentioned results.

Deformation monitoring of roadway.

In this study, the deformation monitoring of the roadway mainly included the relative displacement of roof to floor, which reflected the vertical deformation, and the relative displacement of two ribs, which represented the horizontal deformation. Hence, seven sections of the roadway (marked as 1-7), which corresponding positions were shown in Figure 12, were surveyed at 30 m intervals along the roadway with the mining range of 300 m. Make a sectional plane at the midpoint of working face, and obtain the three states between the working face and the floor roadway, including ahead of floor roadway, right above floor roadway and rear of floor roadway, as shown in Figure 13. Figure 14a shows the the monitoring points of surrounding rock deformation for the roadway section.

Figure 12 Plan of panel 10302 and the layout of roadway sections.

Figure 13 Three states related the working face and the floor roadway.

Table 4 and Figure 14 showed the final results of deformation survey for the floor roadway within the mining range of 300 m when the working face had passed through the roadway and the roadway was no longer affected by mining operation. Hence, it can be seen the vertical and horizontal deformations of the drainage roadway in sections 1-4 were large, with both values approximately 1100-1300 mm. This was because the roadway in this testing range was notably affected by the highly vertical stress of panel 10302 mining, and a large-scale plastic failure zone was formed in the rocks surrounding the roadway. Thus, the strength of the surrounding rocks decreased, and large deformation was observed in the roadway. Moreover, many fractures formec in the floor strata because of the mining activities. This resulted in seepage from the goaf penetrating the floor, which further reduced the strength of the surrounding rocks. However, the deformations of sections 5-7 were relatively small, with values of 600-700 mm. According to the geological report for the Xinglongzhuang coal mine, this testing range (sections 5-7) was affected by mining activities slightly compared to that of sections 1-4, and the deformatior was mainly contributed by the weakening effect of the seepage from the goaf Thus, the deformations in sections 5-7 were much smaller than those o sections 1-4. Hence, it can be concluded that the effect of overhead mining or the floor roadway was significant, and the deformation of the surrounding rocks increased notably. So this exploitation is not safe and the support for the roadway should be strengthened.

Table 4 Results of roadway deformation.

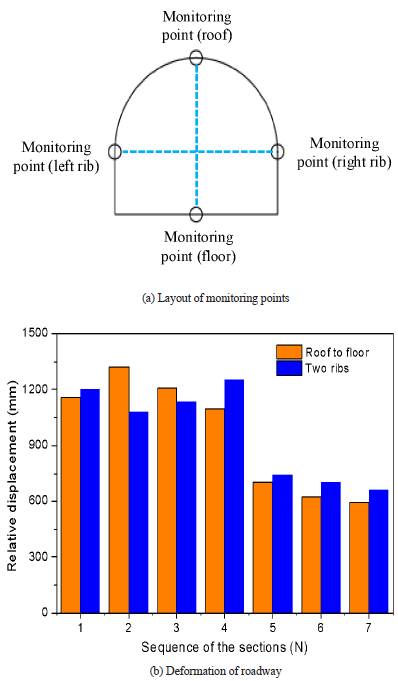

Figure 14 Results of roadway deformation.

In order to study the relationship between the roadway deformation and the mining activities in detail, section 2 which was notably affected by mining were selected; and then the deformation of roof-floor and two ribs with the mining range of 300 m was surveyed. Figure 15 showed the variation curves ol deformation for the roadway with mining activities.

Figure 15 Deformations of section 2 of roadway with the working face mining.

As can be seen from Figure 15, the variations of roof-floor convergence and two ribs convergence of section 2 were similar and showed obvious stage characteristics during the face progress.

When the horizontal distance between working face and floor roadway exceeds 47 m, the roadway was affected by mining activities slightly, so both the roof-floor convergence and two ribs convergence were small and had no much change, as shown in Figure 15 with stage (a), which the pressure appearance from the filed observation was similar to the simulation results with 40 m ≤ L ≤ 60 m in section 3.2.

When the horizontal distance between working face and floor roadway was in range of -34 m ~ 47m (the negative value indicated that the working face had passed the floor roadway), the deformation of roadway occurred significantly due to the violet effect of mining activation, resulting in both the displacement of rib-floor and two ribs convergence increasing sharply, as shown in Figure 15 with stage (b). Hence, compared with the fore-mention numerical simulation, the pressure appearance of filed observation was similar to the simulation results with -20 m ≤ L < 40 m in section 3.2.

When the working face passed through the floor roadway exceeds 34 m, the floor roadway was under the goaf of panel 10302, and the effect of mining operations on the roadway reduced gradually where roadway failure was no longer aggravated. Hence, both the roof-floor convergence and two ribs convergence rose slightly and tended to be stable, as shown in Figure 12 with stage (c). However, the both displacements were large and peak values in survey range were 1321 mm and 1078 mm (shown in Table 4) respectively. At this stage, the pressure appearance of filed observation was similar to the simulation results with -60 m ≤ L _D < -20 m in section 3.2.

Pull-out test analysis of bolts.

Based on the stress characteristics of the bolts, it was possible to assess the stability of the surrounding rock and the rationality of the bolt support of the roadway. Hence, pull-out tests of the existing bolts used for the drainage roadway were performed using a pull-out device (ZY-30), in which the maximum pull-out force was 300 kN. Three bolts (distributed in the roof and two ribs) were arranged in each section for the test, as shown in Figure 16a. The results of the pull-out tests are shown in Table 5 and Figure 16b.

Table 5 Results of the pull-out tests.

Figure 16 Layout of test points and results of the pull-out tests of the bolts.

As shown in Table 5 and Figure 16, the pull-out force for most of the bolts was unable to satisfy the minimum requirement of 50 kN as indicated in the geological report of Xinglongzhuan coalmine. The qualified rates for the bolts in the roof and two ribs corresponded to 42.9%, 28.6%, and 42.9%, respectively, with an average value of only 38.1%. This indicated that the existing support of the roadway had a poor performance during the overhead mining of panel 10302. Based on the study of ^{Lu et al. (1998)}, an important reason for a low bolt pull-out force was an inability to fully utilize the anchoring capacity of the bolt system (i.e., in fractured surrounding rock, the existence of more cracks lead to bolt failure) or the existence of serious damage to the surrounding rock, which prevented the bolt from reaching its anchorage capacity. However, according to the results of the roadway deformation monitoring, the overhead mining of panel 10302 significantly affected the floor roadway, many fractures formed in floor strata, and the deformation of the surrounding rocks increased notably. The strength of the surrounding rocks decreased. Hence, the bolts might not have fully reached their anchoring capacity as a result of the overhead mining, which produced a low pull-out force for the bolts. Thus, the on-site results for the surrounding rock deformation and the pull-out tests of the existing bolts of the drainage roadway indicated that the floor roadway was affected by overhead mining significantly and its deformation-failure were serious; thus more attention should be paid on the similar coal measures strata. Additionally, the observation results and the numerical simulation results showed a good agreement which can further explain rationality of numerical model.
