Establishment of standard layer formation-cement ring-casing numerical model

Through the analysis of the lithological characteristics of the bottom of a standard layer in Daqing oilfield, rock formation sampling is shown in Fig. 1. The rock mass at the bottom of this section belongs to typical jointed rock mass, and there are abundant bedding joints and micro-cracks. This structure facilitates rapid immersion of injected water, forming an expanding flooded area, when the submerged area is squeezed by external force, the rock mass will easily slip along the structural plane of the rock mass.

Figure 1 A sampling of a standard layer shale in Daqing Oilfield

Taking the standard layer as the research object, establish a three-dimensional fluid-solid coupling mechanical model of the casing-cement ring-formation. Formation thickness and formation inclination are determined according to well conditions, the reservoir rock mass is subjected to the pressure of the overlying rock and the weight of the rock itself and the pressure of the production fluid in the casing (^{Wan Mahari et al., 2018}). The initial osmotic pressure is applied to the upper, lower and circumferential surfaces of the formation, a fixed constraint is applied on the bottom surface, displacement constraints in the X and Y directions were applied to the outer surface to simulate the lateral constraint of surrounding formation rocks on the model, the mechanical model is shown in Fig. 2.

Figure 2 Standard layer casing damage analysis mechanical model

Considering the non-uniformity of the formation and the casing, the numerical model is used to calculate the above mechanical model, and the deformation and strain law of the casing under different formation conditions are obtained. The finite element model is shown in Figure 3.

Figure 3 Standard layer casing damage analysis finite element model

According to the test data of a rock layer in Daqing Oilfield, set the rock formation of mudstone - shale - mudstone interbed structure, the upper and lower mudstones is set as creep materials, shale set into joint material (^{Cheng et al., 2019}). Analysis under the condition of water immersion, due to the difference in mechanical properties between the layers, the deformation of the joint of the cementation position is uncoordinated and the casing deformation is damaged.

Joint materials include joint system water invasion and failure behavior, as well as the failure mechanism of matrix materials. The plastic behavior of the matrix material follows the linear Drucker-Prager failure criterion, and the joint material model uses the stress-based fracture opening criterion. When the crack is open, the model follows:

In the formula, is the normal elastic strain component across the crack, is calculated from the plane stress assumption to calculate the normal elastic strain across the crack.

In the formula, E is the elastic modulus of the material, v is the Poisson's ratio, σ_a1, σ_a2 is the radial stress on the joint surface. The sliding failure surface of the joint system a is defined as follows:

In the formula, β _a is the internal friction angle of the joint system a, d _a is the viscous force of the joint system a, τ _α is the shear stress on the joint surface, p _a is the vertical stress acting on the joint surface.

When f_a < 0, the joint system a does not slip. When f _a = 0, the joint system from sliding.

In the calculation process, the casing deformation is caused by the deformation of the standard layer. In order to accurately simulate the deformation state of the standard layer after water inflow, the simulation of the deformation of the casing is performed in two steps (^{Giwa et al., 2016}). In the first step, the internal stress of the casing and the stress field of the formation caused by the cementing process are applied to the calculation model, and the initial geostress field of the casing-cement ring-formation model is simulated, in the second step, the water pressure boundary conditions are applied to the calculation model to simulate the shale water immersion process, and the casing strain and deformation law under different influent strengths are simulated to provide a basis for the casing damage determination.

Strain and deformation of the casing

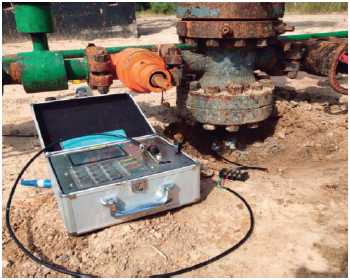

This study selected a well in Daqing Oilfield for testing, the shale layer is located 923 meters underground and the shale thickness is 2.6 meters, the principal stresses in the three directions of X, Y and Z are 23.32 MPa, 22.25 MPa and 25.16 MPa the dip angle of the formation is about 3 degrees, the casing diameter is 51/2", and the yield limit of the casing is 552 MPa. In the field logging process, the well detection uses continuous monitoring and stores test data, and continuously monitors for 9 months, as shown in Fig. 4. According to the above theory and data, the strain of the casing is obtained

Figure 4 Oilfield oil well test

by simulation, as shown in Fig. 5, casing strain value detected by the oil well and the casing strain value calculated by simulation. It can be observed in the figure that the oil well test strain data and simulation results are consistent, indicating the correctness of the calculation model and method.

Figure 5 Comparison of monitoring and calculation of logarithmic strain outside the casing

The Outer load of the casing is 20 MPa, 30M Pa, 40 MPa, 50 MPa respectively. The strain and deformation of the simulated casing change with time, as shown in the casing strain cloud diagram of Fig. 6, the bending deformation position of the casing is the concentration region of plastic strain.

Figure 6 Casing strain cloud

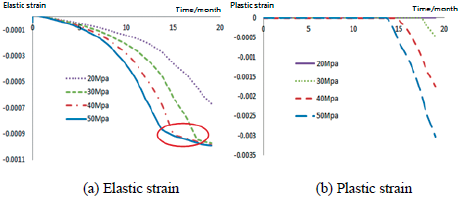

The true strain is defined as the natural logarithm of the ratio of the current length of the initial length, so it is also called logarithmic strain, which is a combination of elastic strain and plastic strain. The elastic strain, plastic strain and true strain in the bending position of the casing is extracted, Figure 7 shows the variation of the elastic strain and plastic strain of the casing with time under different loads:

Figure 7 Variation of elastic strain of casing with time under different loads

When the water injection pressure outside the casing is faster or the pressure outside the casing is larger, the critical elastic strain of the casing gradually decreases with the increase of the external pressure of the casing. But the reduction is small, and the external load is 40 MPa compared with 50 MPa when the plastic deformation occurs. The difference of the elastic strain of the casing is 0.00003, which is about 3.5%, after the casing reaches the plastic deformation, the elastic strain of the casing increases slowly, and the rate of elastic strain of the casing under different external pressures is the same. With the extension of time, the elastic deformation of the casing is basically the same. The larger the external load is, the earlier the deformation will be. The plastic strain rate of the casing is not affected by external pressure. Since field detection shows the comprehensive strain of elastic strain and plastic strain, the variation law of logarithmic strain is extracted, as shown in Figure 8.

Figure 8 Horizontal logarithmic strains of casing under different loads Horizontal

Figure 9 Horizontal deformations of the casing under different loads

Figure 8 shows the horizontal logarithmic strain of casing under different loads. The strain growth curve can be divided into the logarithmic strain slow growth phase, the accelerated growth phase and the rapid growth phase. The casing deformation law corresponding to Fig. 9 is the slow deformation phase and the deformation acceleration phase. The slow growth phase of logarithmic strain mainly occurs in the initial stage of elastic deformation of casing, and the acceleration phase of logarithmic strain is the stage of elastic instability of casing, and the stage of rapid growth is the stage of plastic strain of casing. In the elastic instability stage and the plastic deformation stage, the casing deformation is in the acceleration zone, which is the instability zone of the casing deformation, and the casing damage is intensified at this stage. When the elastic strain of the casing accumulates to a certain extent, the plastic strain increases sharply and the casing enters the plastic strain phase. From the point of view of the management of casing damage, in the accelerated growth phase of casing logarithmic strain, timely take appropriate measures to slow the casing damage.

This study proposes a method to predict the critical strain and the true strain of the casing. When the true strain of the casing exceeds the critical strain of the casing, the casing will enter the plastic deformation stage and an early warning to reduce casing damage.

Standard layers casing loss prediction

The main factors affecting the casing include: formation elastic modulus, formation thickness, formation inclination, casing strength and water injection pressure. This study conducts 3 level orthogonal tests on 5 parameters, according to the numerical simulation method established above, the true strain value of the casing and the critical strain value when the casing is damaged are obtained, the calculation results are shown in Fig. 10.

Figure 10 Orthogonal test numerical simulation results data scatter plot

It is concluded from Figure 10 that the three levels of the reservoir elastic modulus, reservoir thickness, reservoir angle, casing strength and casing water injection pressure are combined to obtain 37 sets of parameters and corresponding casing damage critical strain values and true strain value of the casing. The data analysis software was used to obtain the binary multiple regression equations which characterize the relationship between the critical strain and true strain and the above five factors, and the variance analysis method was used to verify the rationality of the equation. The equation was used to predict the casing damage. Then get the following mathematical model.

Among them, is the casing critical strain; ε _zx is the casing true strain; x₁ is the reservoir elastic modulus, GPa; x₂ is the reservoir thickness, m; x₃ is the reservoir inclination, degree; x₄ is the casing strength, MPa; and x₅ is the outer casing pressure, MPa.

Comparing the measured critical strain and true strain curve with the multiple regression fitting theoretical curve by comparing Fig. 11 with Fig. 12, it can be seen that the formula of multiple regression theory can fit the sample data well.

Figure 11 Comparison of Sampling Critical Strain Data and Multiple Regression Critical Strain

Figure 12 Comparison of on-site sampling data with theoretical curves

According to the prediction equations of critical strain and true strain of the casing obtained by binary regression, the critical strain value of the casing and the true strain of the casing can be predicted under conditions of known oil well parameters and production parameters. The equation is

If the equation (6) is satisfied, the casing begins to undergo unstable deformation and enters the stage of plastic deformation, and measures need to be taken in time, otherwise, the casing is stable and no instability damage occurs. The prediction equation is suitable for the standard layer of the second section of Daqing Oilfield. Other oilfields can use the above method to determine the prediction equation and to determine the damage of the casing.
